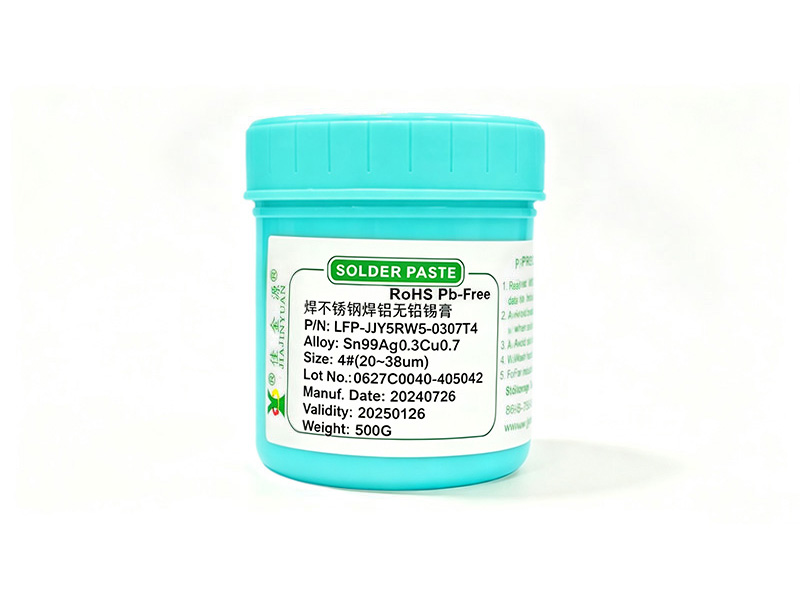

Collecting a complete range of solder paste, solder wire and solder rods, providing welding materials suitable for various SMT scenarios
Brand: JJY TinSolder
Model: LFP-JJY5RW5-0307T4
Alloy Composition: Sn99Ag0.3Cu0.7
Particle Size: 4#（20-38um）
Viscosity: 160±20Pa.S
Activity: ORH1
Melting Point: 221-227℃
Specification: 500g/bottle
| Name | Parameters |
|---|---|
| Series | Stainless steel and aluminum soldering lead-free solder paste 8MW5/5RW5 |
| Applications | For stainless steel and aluminum soldering; can be cleaned with water |
| Halogen | ORH1 |
| Flux Type | Water-washable |
| Alloy Powder | SC07/0307/105/305/Sn64Bi35Ag1/Sn64.7Bi35Ag0.3/Sn42Bi58 alloy powders, T3, T4 |
LFP-5RW5-0307T4 water-washable lead-free solder paste for stainless steel and aluminum substrates is made from Sn99Ag0.3Cu0.7 lead-free alloy low-oxidation spherical solder powder, fully eco-compliant across the series. Paired with the ORH1 high-activity water-washable flux system, the paste has stable viscosity and uniform printing, with excellent wetting on stainless steel and aluminum; post-soldering residue can be cleaned directly with pure water, leaving the board clean and residue-free.
Developed for difficult-to-solder stainless steel and aluminum alloy substrates, the high-activity formula balances soldering wetting force with low corrosion. The residue is highly water-soluble and can be cleaned without organic solvents, simplifying downstream cleaning. Available alloy systems cover SC07/0307/105/305/Sn64Bi35Ag1/Sn64.7Bi35Ag0.3/Sn42Bi58, with T3 and T4 particle sizes generally available.
The ORH1 water-washable system leaves no stubborn rosin residue and suits high-cleanliness production. All materials can be supplied with SGS test reports and meet RoHS environmental control standards.
| Item | Specification | Reference Standard |
|---|---|---|
| Viscosity | 160±20Pa·S | IPC-TM-650 |
| Solder Ball | PASS | IPC-TM-650 |
| Printing Durability | Excellent | |
| Flux Content | 10.5%~11 .5% | |
| Flux Type | ORL1 | IPC J-STD-004 |
| Halogen Content | <0> | IPC J-STD-004 |
| Copper Mirror Corrosion Test | Pass after washing | IPC-TM-650 |
| Spread Rate | 95% | JIS-Z-3197(1999) |
| Tack Life | 6-8 hours | |
| Solder Pit Test | Pass | IPC-TM-650 |
| Shelf Life (2-10°C) | 6 months | |
| Printability | Good printability on boards with pitches of T3: 0.5mm; T4 (8MW1P): 0.4mm; T4 (5RW1): 0.3mm; T5 (5RW1): 0.15mm |
| Alloy | Main Components (%) | Impurity Content (%) | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Sn | Ag | Cu | Pb | Sb | Fe | Zn | Bi | Al | As | In | Ni | Cd | Hg | |
| Sn99Ag0.3Cu0.7 | REM | 0.2~0.4 | 0.6~0.8 | <0> | <0> | <0> | <0> | <0> | <0> | <0> | <0> | <0> | <0> | <0> |
Stable printing viscosity and tack with excellent formability and up to 100% solder climbing height. Bright, full solder joints effectively solve industry challenges such as cold joints, solder bridging, solder balls, tombstoning, and voids.
Certified to multiple environmental SGS standards including RoHS, halogen, and REACH (SVHC). Post-solder residue is transparent and colorless, ROL0 no-clean, with high insulation resistance for safe, reliable performance.
Advanced production and testing equipment from Germany and Japan, strict ISO9001/ISO14001 quality control, and 21 inspection steps per batch ensure consistent, stable performance over the long term.
Our experienced engineers provide one-on-one service, free on-site debugging, and better-matched solder paste products, solving soldering process issues on the spot.
A full range of solder paste products to meet diverse process needs
SAC305 alloy, wide application range, high soldering reliability — the most widely used eco-friendly solder paste today
Sn42Bi58 alloy with a melting point of 138°C, effectively protecting heat-sensitive components such as FPCs
Sn63Pb37 eutectic alloy with excellent soldering performance and cost efficiency, ideal for general consumer electronics
| Model | Application | Halogen | Type | Alloy Powder |
|---|---|---|---|---|
| Leaded Solder Paste 8MN/7RN |
High activity, ideal for QFN/DFN high-climbing scenarios; bright solder joints; | 600~750ppm ROL1 |
Rosin Type | Alloy powder such as 62362/62836804/6337/6040 T2.5, T3, T4 |
| Leaded Solder Paste 7M/7R |
Suitable for high-precision and standard scenarios such as communications, tablets, laptops, and phones; bright solder joints; | 250~400ppm ROL0 |
Rosin Type | Alloy powder such as 62362/62836804/6337/6040/5545 T2.5, T3, T4, T5 |
| Leaded Solder Paste 7MTWT/7RTWT |
Suitable for high-precision and standard scenarios such as communications, tablets, laptops, and phones; withstands long placement after printing without solder blackening or solder balls; bright solder joints; | <500ppm ROL0 |
Rosin Type | Alloy powder such as 62362/62836804/6337/6040/5545/55X/50X/45X/40X/434314 T2.5, T3, T4, T5 |
| Leaded Solder Paste 7MTHT/7RTHT |
Dedicated to outdoor display scenarios; stable viscosity and long stencil life (a standout advantage); bright solder joints; concentrated rosin residue (no screen mottling, even ink color) | 250~400ppm ROL0 |
Rosin Type | Alloy powder such as 62362/62836804/6337/6040 T2.5, T3, T4, T5 |
| Leaded Solder Paste 7MH/7RH |
General purpose, transparent and bright residue; especially suitable for white boards such as LED, with strong drying resistance and continuous printing for over 16 hours; solder paste can be stored at room temperature; withstands long placement after printing without solder spattering, especially free of solder balls | 250~400ppm ROL0 |
Rosin Type | Alloy powder such as 62362/62836804/6337/6040/5545/55X/50X/45X/40X/434314 T2.5, T3, T4 |
| Leaded Solder Paste 7ML/7RL |
Transparent and bright residue; especially suitable for white boards such as LED, with slightly lower drying resistance, so best for fast-consumption scenarios; can also be used for grooved embedded heat sinks to achieve a low void rate | 250~400ppm ROL0 |
Rosin Type | Alloy powder such as 62362/62836804/6337/6040/5545/55X/50X/45X/40X/434314 T2.5, T3, T4 |
| Leaded Solder Paste 7MF/7RF |
Dedicated to silver pads such as silver-plated electronic ceramic components, photovoltaic cells, and light-show glass screens; does not corrode silver pads or cause blackening; | 150~350ppm ROL0 |
Rosin Type | Alloy powder such as 62362/62836804/6337/6040/5545 T2.5, T3, T4 |
| Water-Wash Leaded Solder Paste 3MW9/3RW9 |
Water-washable, lower cost, excellent printing formability; also suitable for energy-storage battery lead grid soldering; | ORH1 | Water-Wash Type | Alloy powder such as 62362/62836804/6337/6040/5545/5050/4555/4060/3565/3070/2575/2080/1585/1090/595 T2.5, T3, T4 |
| Leaded Solder Paste for Stainless Steel & Aluminum 3MW5/3RW5 |
For soldering stainless steel and aluminum; can be cleaned with water | ORH1 | Water-Wash Type | Alloy powder such as 62362/62836804/6337/6040/5545/5050/4555/4060/3565/3070/2575/2080/1585/1090/595 T2.5, T3, T4 |
| Leaded Alloy Type | Melting Point (°C) | Soldering Temp. (°C) | T2.5 | T3 | T4 | T4.5 | T5 | T6 | T7 |
|---|---|---|---|---|---|---|---|---|---|
| Sn62Pb36Ag2 | 179 | 200-225 | ✔ | ✔ | ✔ | ✔ | ✔ | ||
| Sn62.8Pb36.8Ag0.4 | 181 | 200-225 | ✔ | ✔ | ✔ | ✔ | ✔ | ||
| Sn63Pb36.9Ag0.1 | 181 | 200-225 | ✔ | ✔ | |||||
| 6337 (Sn63Pb37) | 183 | 200-225 | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| 6040 (Sn60Pb40) | 183-191 | 210-235 | ✔ | ✔ | ✔ | ||||
| 5545 (Sn55Pb45) | 183-203 | 225-245 | ✔ | ✔ | ✔ | ||||
| 5050 (Sn50Pb50) | 183-215 | 235-255 | ✔ | ✔ | ✔ | ||||
| 4555 (Sn45Pb55) | 183-227 | 245-265 | ✔ | ✔ | ✔ | ||||
| 4060 (Sn40Pb60) | 183-238 | 255-280 | ✔ | ✔ | ✔ | ||||
| 3565 (Sn35Pb65) | 183-248 | 265-290 | ✔ | ✔ | ✔ | ||||
| 3070 (Sn30Pb70) | 183-258 | 280-300 | ✔ | ✔ | ✔ | ||||
| 2575 (Sn25Pb75) | 183-260 | 280-300 | ✔ | ✔ | ✔ | ||||
| 2080 (Sn20Pb80) | 183-279 | 300-320 | ✔ | ✔ | ✔ | ||||
| 1585（Sn15Pb85） | approx. 183-285/295 | 305-335 | ✔ | ✔ | ✔ | ||||
| 1090（Sn10Pb90） | 268-301 | 320-340 | ✔ | ✔ | ✔ | ||||
| 595（Sn5Pb95） | 300-314 | 335-355 | ✔ | ✔ | ✔ | ||||
| Sn55/Pb41.5/Bi3/Sb0.5 | - | - | ✔ | ||||||
| Sn52/Pb42.5/Bi5/Sb0.5 | 170 | 190-220 | ✔ | ||||||
| Sn48/Pb48.6/Bi3/Sb0.4 | - | - | ✔ | ||||||
| Sn43/Pb49/Bi7/Sb1 | - | - | ✔ | ||||||
| Sn38/Pb52.5/Bi8/Sb1.5 | 173 | 190-220 | ✔ | ||||||
| Sn43Pb43Bi14 | 144-163 | 185-200 | ✔ | ✔ | ✔ | ||||
| Sn10Pb88Ag2 | 268-299 | 320-340 | ✔ | ✔ | |||||
| Sn5Pb92.5Ag2.5 | 287-296 | 315-335 | ✔ | ✔ | |||||
| Sn5Pb93.5Ag1.5 | 296-301 | 320-340 | ✔ | ✔ |
| Model | Application | Halogen | Type | Alloy Powder |
|---|---|---|---|---|
| Halogen-Free Lead-Free High-Temp Solder Paste 8MQP/5RQ |
High activity, highest solder climbing (close to 100%) for QFN/DFN and similar applications | Single <900ppm / Dual <1500ppm ROL1 |
Rosin Type | Alloy powder such as 0307/105/305 T3, T4, T5 |
| Halogen-Free Lead-Free High-Temp Solder Paste 8MTSP/5RTS |
Higher activity, good solder climbing (70%-90%) for QFN/DFN and similar applications; low, bright residue; | <500ppm ROL0 |
Rosin Type | Alloy powder such as 0307/105/305 T3, T4, T5 |
| Halogen-Free Lead-Free High-Temp Solder Paste 8MNTTP/5RNTT |
Especially suitable for high-precision applications such as communications, tablets, laptops, mobile phones, Bluetooth, and fingerprint locks; low, transparent residue; | 100~200ppm ROL0 |
Rosin Type | Alloy powder such as 0307/105/305/00507BN/00507B2N T3, T4, T5 |
| Zero-Halogen & REACH Lead-Free High-Temp 8M9P/5RR |
Zero halogen, extremely low void rate, suitable for low-void, high-thermal-conductivity applications such as automotive lighting; low, transparent residue; | 0ppm ROL0 |
Rosin Type | Alloy powder such as 0307/105/305 T3, T4, T5 |
| Halogen-Free Lead-Free High-Temp Solder Paste 8MA |
Suitable for general and wider-pitch standard scenarios such as lighting LEDs; low, transparent residue; | <900ppm ROL1 |
Rosin Type | 0307/0107/SC07/00507BN/00507B2N alloy powder T3, T4 |
| Standard Halogen-Free Lead-Free Medium-Temp & Low-Temp Solder Paste 8M/2R (8MTHL/2RTHL) |
For lead-free medium-temp and low-temp scenarios that only tolerate medium/low temperatures, such as LEDs, crystal oscillators, copper wire lights, and transparent screens; | 800~900ppm ROL1 |
Rosin Type | Sn64Bi35Ag1/Sn64.7Bi35Ag0.3/Sn42Bi58/Sn42Bi57Ag1/Sn49.6Bi48.5Ag1Cu0.9/high-reliability LT32S alloy powder T2.5, T3, T4, T5 |
| Zero-Halogen Lead-Free Ultra-Low-Temp Solder Paste 5RG |
For special scenarios that only tolerate ultra-low temperatures; | 0ppm ROL0 |
Rosin Type | In52Sn48/In40.2Sn20.7Bi39.1 alloy powder T5, T6, T7 |
| Water-Wash Lead-Free High-Temp Solder Paste 8MW1P/5RW1 |
Post-solder residue can be cleaned with water; low cost; | ORH1 | Water-Wash Type | SC07/0307/105/305 alloy powder T3, T4 |
| Water-Wash Lead-Free Low-Temp Solder Paste 8MW1AP/5RW1A |
Leaves no traces after soldering on nickel-plated aluminum heat sink fins; low cost; | ORH1 | Water-Wash Type | Alloy powder such as Sn42Bi58 T2.5, T3, T4 |
| Laser Lead-Free High-Temp Solder Paste 5RLJ |
Laser-heated soldering with superior performance and no solder balls; compatible with pneumatic, screw, and jet valve dispensing. | <500ppm ROL0 |
Rosin Type | 0307/105/305/00507BN/00507B2N alloy powder T3, T4, T5, T6, T7 |
| Laser Lead-Free Medium/Low-Temp Solder Paste 5RLJB |
Laser-heated soldering with superior performance and no solder balls; compatible with pneumatic, screw, and jet valve dispensing. | <500ppm ROL0 |
Rosin Type | Sn64Bi35Ag1/Sn64.7Bi35Ag0.3/Sn42Bi58/Sn42Bi57Ag1/Sn49.6Bi48.5Ag1Cu0.9/high-reliability LT32 and LT32S alloy powder T3, T4, T5, T6, T7 |
| Lead-Free Solder Paste for Stainless Steel & Aluminum 8MW5/5RW5 |
For soldering stainless steel and aluminum; can be cleaned with water | ORH1 | Water-Wash Type | SC07/0307/105/305/Sn64Bi35Ag1/Sn64.7Bi35Ag0.3/Sn42Bi58 alloy powder T3, T4 |
| Lead-Free Solder Paste Alloy Type | Melting Point (°C) | Soldering Temp. (°C) | T2.5 | T3 | T4 | T4.5 | T5 | T6 | T7 |
|---|---|---|---|---|---|---|---|---|---|
| Sn96Ag4 | 221-226 | 240-260 | ✔ | ✔ | ✔ | ||||
| Sn97Ag3 | 221-224 | 240-260 | ✔ | ✔ | ✔ | ||||
| 305（Sn96.5Ag3Cu0.5） | 217 | 235-255 | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | |
| 105（Sn98.5Ag1Cu0.5） | 221-227 | 240-260 | ✔ | ✔ | |||||
| 0307（Sn99Ag0.3Cu0.7） | 221-227 | 240-260 | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | |
| 0107（Sn99.2Ag0.1Cu0.7） | 221-227 | 240-260 | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | |
| 00507BN（SnCu0.7Ag0.05BiNi） | 221-227 | 240-260 | ✔ | ✔ | |||||
| 00507B2N（SnCu0.7Ag0.05Bi2Ni） | 221-227 | 240-260 | ✔ | ✔ | |||||
| 99307（Sn99.3Cu0.7） | 221-227 | 240-260 | ✔ | ✔ | |||||
| SC07NG（Sn99.3Cu0.7 (Ni0.04-0.07, Ge0.008-0.01)） | 227 | 240-260 | ✔ | ✔ | |||||
| Sn90Sb10 | 253.3-255.7 | 275-290 | ✔ | ✔ | ✔ | ✔ | |||
| Sn95Sb5 | 245 | 265-285 | ✔ | ✔ | ✔ | ✔ | |||
| Sn69.5Bi30Cu0.5 | 149-186 | 205-225 | ✔ | ✔ | |||||
| 64351（Sn64Bi35Ag1） | 151-172 | 195-220 | ✔ | ✔ | ✔ | ✔ | ✔ | ||
| 6473503（Sn64.7Bi35Ag0.3） | 151-172 | 195-220 | ✔ | ✔ | |||||
| 4258（Sn42Bi58） | 138 | 160-185 | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | |
| Sn42Bi57Ag1 | 139/140 | 160-185 | ✔ | ✔ | ✔ | ✔ | ✔ | ||
| High-Reliability Lead-Free Low-Temp LT32/LT32S | 143-144 | 160-190 | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | |
| In52Sn48 | 118 | 140-160 | ✔ | ✔ | ✔ | ||||
| In40.2Sn20.7Bi39.1 | 65-89 | 110-130 | ✔ | ✔ | ✔ |
Targeted solutions for every soldering process challenge
Have other soldering issues? Consult our technical engineers now
Free Technical Consultation18 years of craftsmanship — every detail is a promise of quality
With 18 years of R&D and production experience and a scientifically developed modern process formula, our solder paste is highly compatible with the parts being soldered, producing strong, bright, uniform, full solder joints with no solder balls.
An ROL0 no-clean eco-friendly flux was developed, leaving little post-solder residue, offering high insulation resistance, keeping the board clean and corrosion-free, and forming a protective layer that prevents re-oxidation of the substrate.
An optimized flux formula with trace-element alloy additions, combined with a special process, gives the solder paste high activity that fully wets the pads and achieves a high solder climbing height, effectively eliminating cold and false joints, shifting, tombstoning, solder balls, voids, and other issues during soldering.
The solder powder particles are round and uniform in size, with no stringing, sticking, or spattering during printing and no collapse, sticking, or peaks after forming. Viscosity changes little over continuous printing, the paste does not dry out, and tack is well maintained without material loss.
Post-solder residue dissolves and washes away with pure water (deionized water), leaving no residue behind. Cleanliness is very high, achieving excellent ICT test performance without damaging electronic components. The production and cleaning processes generate no pollution and meet environmental requirements. Cleaning is fast — much faster than with other types of solder paste.
Follow the guidelines to get the best performance
Refrigerate at 0-10°C; shelf life 6 months
Take out 2-4 hours before use to reach room temperature
Stir thoroughly for 1-3 minutes until uniform
Seal and refrigerate any unused solder paste separately
