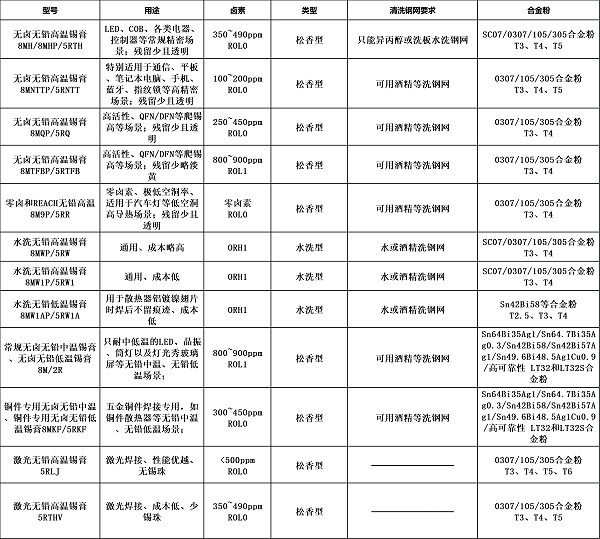

Selection Guide Product characteristic

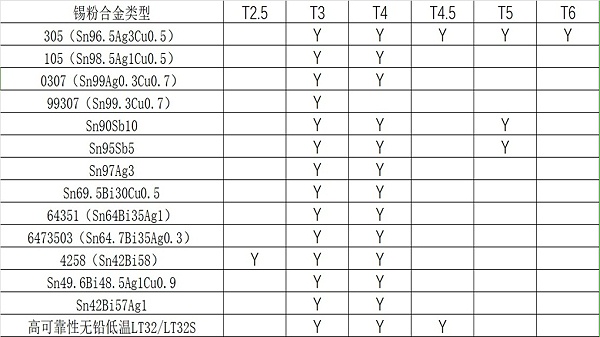

Applicable alloy Scope of application
Product Features Product characteristic
-
1 It can be washed with water and has a high degree of cleanliness The residues after welding can be dissolved and washed away with pure water (deionized water). After cleaning, no residue is left, and the cleanliness is very high, reaching an excellent levelICTTest the performance without causing damage to electronic components. The production and cleaning processes do not cause pollution and meet environmental protection requirements. It has a fast cleaning speed, much faster than other types of solder paste.
-
2 The weld points are firm, bright and full 15With years of R&D and production experience, we have scientifically mastered modern process formulas, ensuring that the solder paste is highly compatible with the soldered products. The solder joints are firm, bright, uniform, full and free of solder beads.
-
3 It has strong wettability and good tin crawling High-performance thixotropic agents are added to the solder, making the solder paste highly active. The molten solder paste significantly wets the solder pad, reducing the phenomenon of false soldering during the soldering process.
-
4 The printing is stable and has good demolding properties The tin powder particles have good roundness and uniform size. During printing, there is no trailing, sticking or splashing phenomenon. There is no collapse, sharp or continuous tin connection during molding. The viscosity change is small during continuous printing, and it does not dry out. The components do not shift.
Instructions for Use Instructions for use
in2-10℃The storage period under the environment is6Months, not less than0℃Store under such conditions and thaw before use2-4It should be left to room temperature for more than an hour before opening to prevent the formation of tin beads due to moisture. Then stir well before use.
The on-time delivery rate is as high as99%
