What are some specific cases of the influence of solder paste viscosity on soldering quality?

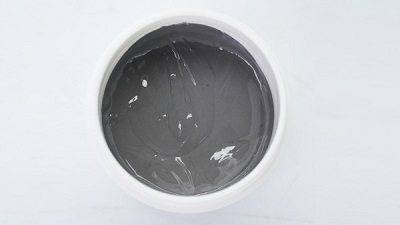

Solder pasteAs an indispensable core material in the electronic assembly process, its viscosity characteristics have a decisive influence on the soldering quality and production efficiency. Viscosity, this crucial physical property, plays a vital role in the printing and soldering processes of solder paste. Below, Shenzhen JJY Solder Paste Manufacturer will delve into the significance of solder paste viscosity in electronic assembly and demonstrate its practical effects through specific application cases.

I. The Importance of Solder Paste Viscosity

(1) Printing performance

Solder paste with appropriate viscosity can ensure a clear contour is maintained during the printing process, avoiding collapse or penetration. High-viscosity solder paste has better anti-sagging performance during printing and is suitable for fine-pitch printing. Low-viscosity solder paste, on the other hand, has better fluidity and is suitable for high-speed printing and dispensing processes.

(II) Welding quality

Solder paste with appropriate viscosity can ensure uniform distribution during the soldering process and form good solder joints. Solder paste with excessively high viscosity may lead to poor soldering, such as cold soldering and empty soldering, etc. However, if the viscosity is too low, it may cause defects such as solder paste overflow and bridging, affecting the reliability and stability of the product.

(III) Production Efficiency

By reasonably regulating the viscosity of solder paste, the printing and soldering processes can be optimized and the production efficiency can be improved. For example, choosing solder paste with low viscosity can shorten the printing time and accelerate the production speed. High-viscosity solder paste can reduce waste during the printing process and improve material utilization.

Ii. Application Cases of Solder Paste Viscosity

(1) Welding of the mainboard of a smart phone

During the soldering process of the mainboard of a smart phone, due to the dense and small components on the mainboard, the viscosity of the solder paste is required to be extremely high. Using low-viscosity solder paste can ensure that the solder paste is evenly distributed during the printing process, preventing it from penetrating between adjacent components and causing short circuits. Meanwhile, low-viscosity solder paste can also increase the printing speed and shorten the production cycle.

(2) Welding of automotive electronic components

The soldering of automotive electronic components also has specific requirements for the viscosity of solder paste. Due to the complex and changeable working environment of automotive electronic components, extremely high requirements are placed on the reliability and stability of soldering. Using high-viscosity solder paste can ensure that the solder paste does not collapse or penetrate during the soldering process, thereby maintaining the accuracy and stability of the soldering. In addition, high-viscosity solder paste can also provide better mechanical stability and thermal stability, meeting the working requirements of automotive electronic components in harsh environments such as high temperature and high humidity.

(3) Welding of aerospace electronic equipment

In the soldering process of aerospace electronic equipment, the viscosity requirements for solder paste are more stringent. Due to the extremely complex working environment of aerospace electronic equipment and the high requirements for reliability, high-viscosity solder paste is needed to ensure the accuracy and stability of soldering. High-viscosity solder paste can provide better adhesion and anti-sagging performance, ensuring that the solder paste does not fall off or deform during the printing and soldering processes.

Iii. Conclusion

Solder paste viscosity plays an important role in electronic assembly. Reasonable regulation of viscosity can optimize the process and improve efficiency and quality. In practical applications, the appropriate viscosity type should be selected based on the scene requirements. With the development of the electronics industry, the research and control of solder paste viscosity will be more in-depth and precise, providing a strong guarantee for the stability and reliability of electronic assembly processes.

As a 16-year-old veteran solder paste manufacturer, JJY has always been committed to the research and development, production and sales of solder paste. The quality of the solder paste is stable, without solder bonding, false soldering or establishing a reputation. Residual Wuxi beads, bright and full solder joints, firm welding, and excellent electrical conductivity. If you have any needs, please feel free to contact us.
