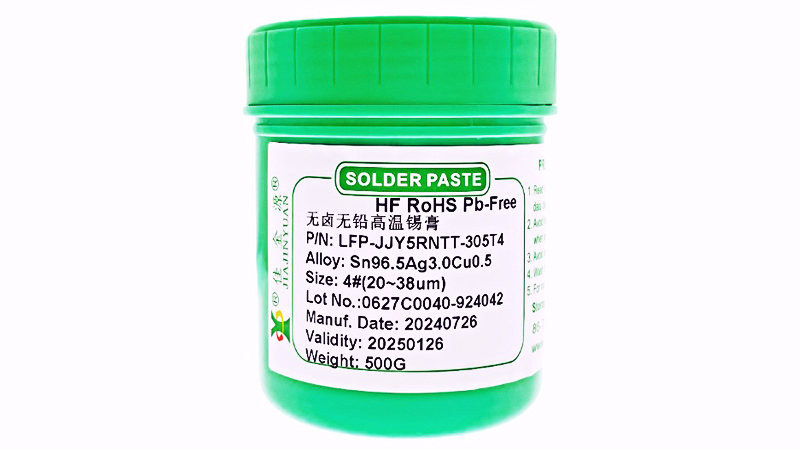

Brand:JIAJINYUAN/JJY
Model:LFP-JJY5RNTT-305T4
Alloy composition:Sn96.5Ag3.0Cu0.5
Particle size:4#(20-38um)
Viscosity:170±20)Pa.S
Activity: High activity
Melting point:217℃
Peak temperature:230-260(℃)
Specification:500g/bottle
+86 0755 88366766
LFP-JJY5RNTT-305T4Halogen-free and lead-free high-temperature solder paste is adoptedSn96.5Ag3.0Cu0.5It is made of spherical solder powder of lead-free tin alloy with low oxidation degree and has excellent environmental protection characteristics. At the same time, the paste, which is refined with imported chemical materials, can achieve very high stability and effect. The components of the paste are well compatible with most glues.
It is applicable to high-precision scenarios such as communication, tablets, laptops, mobile phones, Bluetooth, and fingerprint locks; It is also applicable to the general spacing≧0.3mmThe printing of solder pads andQFN,BGAMounting of precision components such as devices.
The solder paste contained in this product complies with the standards of the United StatesQQ-571As stipulated in itRMAType and passSGSTest compliantRoHSInstruction requirements.
The on-time delivery rate is as high as99%
Applicable to in-vehicle electronics5GHigh-precision scenarios such as communication electronic power modules, tablets, laptops, mobile phones, Bluetooth, and fingerprint locks; Little residue and transparent;
| Project | Parameters | |
| Appearance | The appearance is light gray, smooth and paste-like without layering | |
| Flux content(wt%) |
(11.5±0.5)%
|
|
| Halogen content(wt%) |
<0.05%
|
|
| Viscosity(25℃whenpa.s) |
(170±20)Pa.S
|
|
| Particle volume(μm) | 20~38 | |
| The water jet takes impedance(Ω·cm) | >1×105 | |
| Silver tinate paper test | Qualified | |
|
Copper mirror corrosion test
|
PASS | |
| Surface insulation impedance test(Ω) | Initial value |
1.0×10 13Ω
|
| After the hot and humid weather |
1.0×1012Ω
|
|
| Expansion rate(%) |
85%
|
|
| Tin bead test | PASS | |
|
Note: The test method is applicableJIS.Z.3282andANSI/J-STD-006 |
||
in5-10℃The storage period under the environment is6Months, not less than0℃Store under such conditions and thaw before use2-4It should be left to room temperature for more than an hour before opening to prevent the formation of tin beads due to moisture. Then stir well before use.
Our experts tailor solder alloys, flux activity levels, cleaning methods, and specialty properties to your process. We optimize welding parameters and recommend application-specific solutions, boosting your first-pass yield.

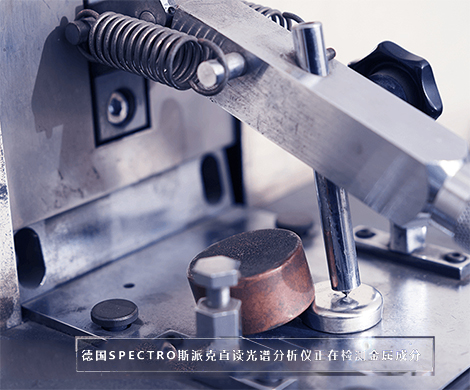

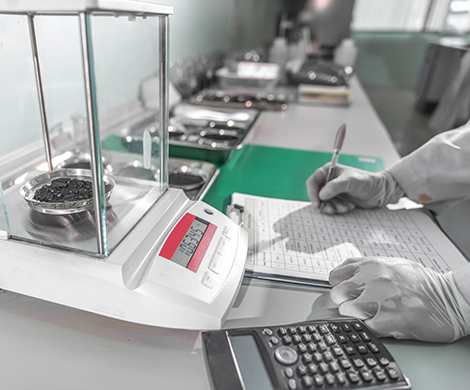

5,000㎡ facility with ISO9001-certified and production & testing equipments. Full-process inspection: raw materials, processes, and finished products. SGS-certified eco-compliance: ROHS, REACH, ELV.
High-purity tin with lower dross rate than industry average. Fast wetting | Robust & glossy joints | Zero defects (cold joints, bridging, collapse,etc.). Factory-direct pricing for maximum cost efficiency.
Provide technical support: 24-hour response | 72-hour full resolution. Free material replacement & solder dross recycling. Pre-sales consultation & post-sales troubleshooting.
