Soldering Technology, Tin Leads The FutureOne Stop Electronic Tin Soldering Solution Supplier
Brand:JIAJINYUAN/JJY
Ingredients:One-component epoxy resin system
Product density1.32－1.34g/cm3
Product viscosity:300Pa.S - 320Pa.S
Color before curing:Bright red
Color after curing:Brown
Working temperature: 120/150℃

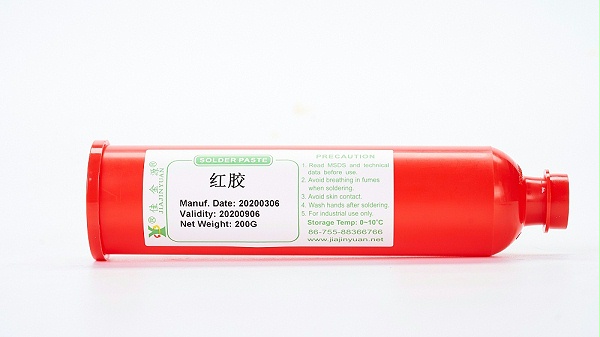

LFP-8T-305Red glue is a single-component epoxy resin adhesive that cures rapidly when stored at room temperature and heated. It allows for curing at low temperatures. Its "shear thinning" viscosity characteristic and low hygroscopicity make it suitable for application in screen printing at room temperatureSMTThe process and the shape of the glue dots are very easy to control. It has stable storage and excellent thermal shock resistance and electrical performance.
The on-time delivery rate is as high as99%
Used for compliance with all requirementsRoHSThe welding of environmentally friendly electronic components and other workpieces as instructed.
in5-10℃The storage period under the environment is6Months, not less than0℃Store under such conditions.2℃ ～10℃(HX-T-250The red glue preservation box can provide an optimal constant-temperature preservation environment for red glue.
