Lead-Free Solder Paste
LFP-JJY5RTH-305T4 halogen-free and lead-free high-temperature solder paste

Brand:JIAJINYUAN/JJY

Model:LFP-JJY5RTH-305T4

Alloy composition:Sn96.5Ag3Cu0.5

Particle size:4#(20-38um)

Viscosity:190±20Pa.S

Activity: High activity

Melting point:217℃

Peak temperature:230-260(℃)

Specification:500g/bottle


Product Description product description

Halogen-free and lead-free high-temperature solder paste<="">

LFP-JJY5RTH-305T4Halogen-free and lead-free high-temperature solder paste is adoptedSn96.5Ag3.0Cu0.5It is made of spherical solder powder of lead-free tin alloy with low oxidation degree and has excellent environmental protection characteristics. At the same time, the paste, which is refined with imported chemical materials, can achieve very high stability and effect. This type of ratioLFP-JJY5R-305T4It has a relatively high viscosity and temperature resistance value, and the high-temperature spatter is greatly improved.

The residue after welding is minimal and transparent, non-corrosive, and has an extremely high surface insulation resistance value, achieving excellent results without the need for cleaningICTTest performance. Halogens are within the halogen-free limit900ppmWithin.

The solder paste contained in this product complies with the standards of the United StatesQQ-571As stipulated in itRMAType and passSGSTest compliantRoHSInstruction requirements.

On-time deliveryThe on-time delivery rate is as high as99%
Consult immediately
Scope of application Scope of application
Wide range Applicable toLED,COBAll kinds of electrical appliances, controllers, light shows, glass exhibitions and other conventional scenes; Little residue and transparent; It is particularly suitable for white boards;
Technical parameters Technical Parameters
Project Parameters
Appearance The appearance is light gray, smooth and paste-like without layering
Flux content(wt%)
11.8%±12%
Halogen content(wt%)
<0.05%
Viscosity(25℃whenpa.s)
190±20Pa.S
Particle volume(μm) 25~38
The water jet takes impedance(Ω·cm) >1×105
Silver tinate paper test Qualified
Copper mirror corrosion test
PASS
Surface insulation impedance test(Ω) Initial value
1.0×10 13Ω
After the hot and humid weather
1.0×1012Ω
Expansion rate(%)
85%
Tin bead test PASS

Note: The test method is applicableJIS.Z.3282andANSI/J-STD-006
Composition of tin powder alloyJIS.Z.3910
The performance Pointers listed in this table are reference values, and the actual values are from each batch of deliveryQAThe report shall prevail.

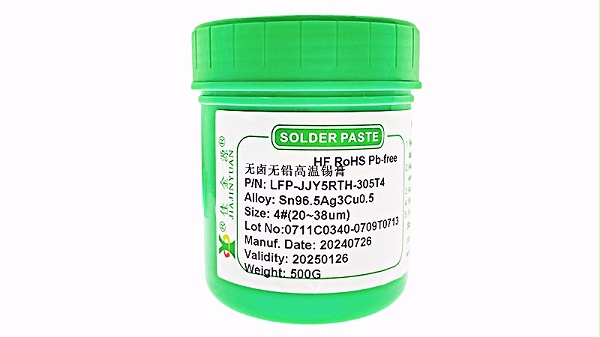

Product display Product Show

Halogen-free and lead-free high-temperature solder paste<="">



Product Features Product characteristic
  • 1 The weld points are firm, bright and full 12With years of R&D and production experience, we have scientifically mastered modern process formulas, ensuring that the solder paste is highly compatible with the soldered products. The solder joints are firm, bright, uniform, full and free of solder beads.
  • 2Low residue, no need for cleaning We have developed and formulated a no-wash environmentally friendly flux, which leaves little residue after welding, has high insulation resistance, a clean board surface without corrosion, and forms a protective layer to prevent the substrate from oxidizing again.
  • 3 It has strong wettability and good tin crawling High-performance thixotropic agents are added to the solder, making the solder paste highly active. The molten solder paste significantly wets the solder pad, reducing the phenomenon of false soldering during the soldering process.
  • 4 The printing is stable and has good demolding properties The tin powder particles have good roundness and uniform size. During printing, there is no trailing, sticking or splashing phenomenon. There is no collapse, sharp or continuous tin connection during molding. The viscosity change is small during continuous printing, and it does not dry out. The components do not shift.
Instructions for Use Instructions for use
Instructions for Use in5-10℃The storage period under the environment is6Months, not less than0℃Store under such conditions and thaw before use2-4It should be left to room temperature for more than an hour before opening to prevent the formation of tin beads due to moisture. Then stir well before use.
