Lead-free Solder Wire
Lead-free solder wire containing 0.3 silver

Brand:JIAJINYUAN/JJY

Alloy composition:Su99Ag0.3cu0.7

Processing and customization: Yes

Welding wire diameter: 0.8(mm)

Melting point:227(℃)

Whether it conforms or notRoHSYes (fits)

Weldable: Copper parts, tin-plated copper parts, etc

Working temperature:280~300(℃)

Specification:50~20000(g)

Product Description PRODUCT DESCRIPTION

containing0.3Silver lead-free solder wire<="">

containing0.3Silver lead-free solder wire is made by mixing lead-free pure tin, pure copper, pure silver in proportion with other environmentally friendly alloys, dissolving them at high temperatures, refining them, removing impurities, casting them into tin cylinders, and then pressing them with a hydraulic press and flux (rosin agent). It is produced and drawn into solder wires of different sizes according to different wire diameter requirements using a wire drawing machine. The alloy composition is divided into tin-copper, tin-silver, tin-silver-copper alloy or other alloys. The flux is evenly poured into the middle part of the tin alloy.

On-time deliveryThe on-time delivery rate is as high as99%
Consult immediately
Scope of application SCOPE OF APPLICATION
Wide range Used for compliance with all requirementsRoHSThe welding of environmentally friendly electronic components and other workpieces as instructed.

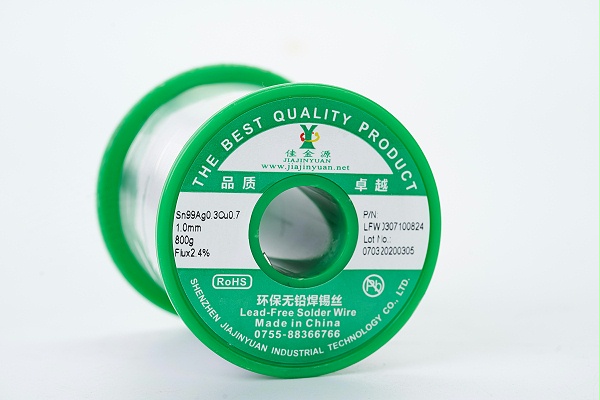

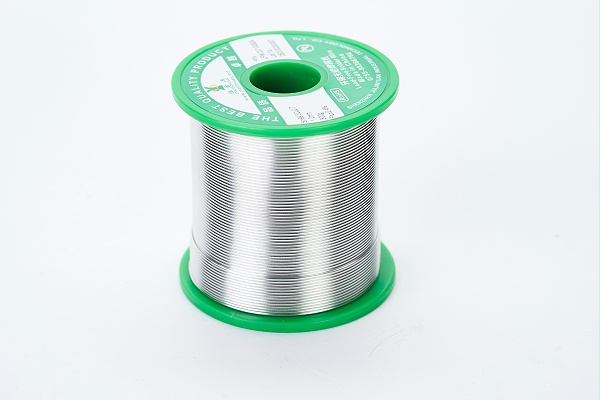

Product display PRODUCT SHOW

containing0.3Silver lead-free solder wire<="">

containing0.3Silver lead-free solder wire<="">

Product Features PRODUCT CHARACTERISTIC
  • 1 Stable performance and safe to use Precise process control ensures that the rosin flux is evenly and continuously distributed, with no interruption of rosin. The soldering speed is fast, without sharpening or splashing. Customized tin wires with high compatibility can be made according to requirements.
  • 2The weld points are bright and the workmanship is excellent Strictly adhering to national standards, it is made of high-purity virgin refined tin, electrolytic copper and pure silver materials, with few elemental impurities, sufficient degree, bright surface of the tin wire, uniform winding without tangling, little smoke and no unpleasant smell during welding, bright and firm weld points, and strong reliability.
  • 3 It has good wettability and is easy to tin The self-developed flux can remove the oxide layer and surface oil stains of the soldered material, reduce the surface tension of the soldered material, increase the welding area, has good wettability, is easy to tin, and has no bridging.
  • 4 Luoyang Iron has less scum and requires no cleaning Adopting a scientific rosin flux formula, it is strictly produced in accordance with national and EU standards, ensuring excellent solderability while guaranteeing low corrosiveness of the flux, fast welding speed and minimal residue after welding.
