What should be done if the BGA solder joints are not full during the SMT assembly process?

inSMTIn surface mount technology (SMT) processingBGAThe fullness of solder joints is a key factor related to the stability and performance of circuit boards. However, in actual operation,BGAInsufficient fullness of solder joints is a relatively common problem. So, exactly what factors have caused this problem? Below is Shenzhen JJYSolder paste manufacturerLet me give you a brief introduction:

First of all, what we need to focus on is the selection of materials. inSMTDuring the surface mount technology (SMT) processing, the quality of the solder and solder ball materials selected directly affects the fullness of the solder joints. High-quality materials can enhance the quality and stability of solder joints. Meanwhile, the selected materials should be compatible withPCBThe material of the plates is compatible, including characteristics such as melting point and wettability, which can ensure the smooth progress of the welding process.

Secondly, temperature control also has an impactBGAAn important factor of solder joint fullness. Temperature management during the welding process is of vital importance. Both excessively high and low temperatures can lead to incomplete weld points. Therefore, we need to precisely control the temperature curve during the welding process and ensure the uniformity of preheating and cooling to achieve high-quality weld points.

Besides,PCBThe design of the board is also a factor that cannot be ignored. When designing, the reliability and stability of welding need to be taken into account, including the size of the pad, the distance between the pad and the weld point, etc. All these may affect the quality of the weld point. Therefore, we need to optimizePCBThe design of the plate is to ensure that the weld points can be evenly distributed and improve the welding quality.

Finally, the skill level of the operators is also a key factor affecting the welding quality. Only operators who have received professional training and have practical operation experience can master it proficientlySMTThe technical key points of surface mount technology (SMT) processing and adjustments and optimizations based on actual conditions. Therefore, we need to attach importance to the skills training of operators, improve their skill levels, so as to reduce human errors in the operation process and enhance the welding quality.

To sum up, it needs to be solvedSMTDuring the surface mount technology (SMT) processingBGAFor the issue of incomplete solder joints, we need to address it from aspects such as material selection and temperature controlPCBComprehensive improvements and optimizations have been made in multiple aspects such as board design and the skill levels of operators. Only in this way can we improve effectivelyBGAThe fullness of the solder joints ensures the stability and performance of the circuit board. This is not only a technical requirement in the production process, but also a key step to enhance the quality and market competitiveness of electronic products.

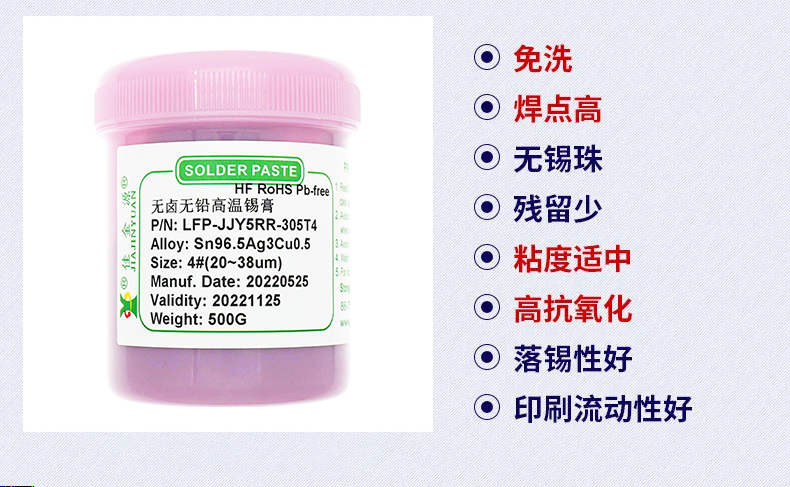

Shenzhen JJY Industrial Technology Co., Ltd. mainly engages in the production and operation of:SMTSolder paste manufacturers of solder paste, syringe solder paste, lead-free solder wire, wave soldering bar, automatic soldering wire, etc.
