Location: Home » Product » Lead-Free Solder Bar » Lead Free Solder Bar-Dip-Higher Temperature Sn96.5Ag3.5

Lead Free Solder Bar-Dip-Higher Temperature Sn96.5Ag3.5

Product Name：Lead Free Solder Bar-Dip-Higher Temperature

Alloy：Sn96.5Ag3.5

Size（approx.）：Trapezoidal Section（P18、Q25、H25）*L326 (MM)

Per Bar（approx.）：1.105KG

Feature：Produced by pure tin and silver.Impurities are lowed to the minimum.

Application：For dip soldering process.

Packaging：Net weight 20KG/CTN

Shelf Life：2 Years

Consult Now

Order Hotline

+86 0755 88366766

Product Description PRODUCT DESCRIPTION

JJY Sn96.5/Ag3.5 is designed as a lead-free alternative for Sn/Pb alloys for electronics assembly operations.
JJY Sn96.5/Ag3.5 alloy has higher melting temperature than standard SAC alloys so may be used when high temperature assembly is required.
The high silver content of JJY Sn96.5/Ag3.5 alloy contributes to stronger, shinier joints.
JJY Sn96.5/Ag3.5conforms and exceeds the impurity requirements of IPC-J-STD-006C and all other relevant international standards.
For stabilization of copper, Cu content in the soldering pot(Sn-Ag-Cu), JJY Sn96.5Ag3.5 alloy will be recommended as a top up solder.

The on-time delivery rate is as high as99%

Consult immediately

Scope of application SCOPE OF APPLICATION

For dip soldering process with ROHS complianted.

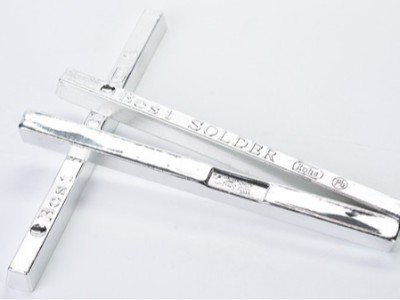

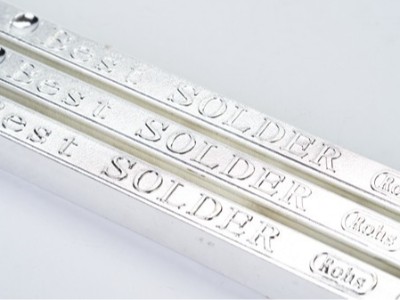

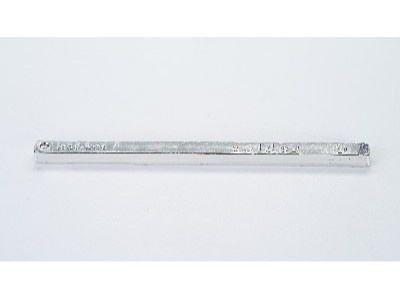

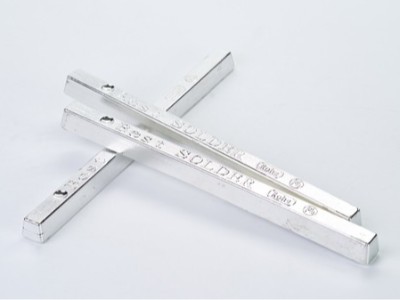

Product display PRODUCT SHOW

Lead-free tin bar

Product Features PRODUCT CHARACTERISTIC

1 The speed of going to tin is very fast Strictly adhering to national standards, it is made of high-purity primary refined tin, electrolytic copper and pure silver materials. After melting, it has low viscosity, good wettability, high fluidity, excellent solderability and is easy to solder, effectively improving the welding efficiency.
2Strong antioxidant capacity The proprietary anti-oxidation alloy technology endows the tin bars with unique anti-oxidation properties, ensuring a very low oxidation slag production rate during the welding process and reducing unnecessary waste.
3 The weld points are bright and firm After special process adjustment and refining treatment, the metallographic particles are very fine, the weld points are firm, bright and full, without false welding, voids, sharp points or bridging phenomena, and there are no residual impurities after welding.
4 Ultra-low slag discharge technology The unique high-antioxidant formula, combined with free on-site technical services provided by engineers, such as reasonable setting of temperature, peak height, chain speed, slag removal and tin strip addition time points, inspection and correction of components, flux compatibility, etc. To effectively maintain the stability of solder composition, find the balance point between efficiency and stability, and control the slag discharge rate at7~20%. Free on-site tin cleaning service. High price for tin slag recycling or exchange for brand new tin bars.

Specification

SPECIFICATION

Item	Specification
Alloy Composition	Sn96.5Ag3.5
Appearance	Bright and shiny surface finishes
Shape	Bar
Melting Point	Approx. 221°C
Density	Approx. 7.5 g/cm³
Electrical Conductivity	Approx. 14 %IACS
Electrical Resistivity	Approx. 12.3 μΩ.cm
Soldering Temperature	300-400°C
Oxidation Resistance	Good
Amount of tin slag	A small amount

Company Advantages

: Advanced R&D Team Custom Solutions for Clients

Our experts tailor solder alloys, flux activity levels, cleaning methods, and specialty properties to your process. We optimize welding parameters and recommend application-specific solutions, boosting your first-pass yield.

: Rigorous Quality Control Consistent Performance Stability

5,000㎡ facility with ISO9001-certified and production & testing equipments. Full-process inspection: raw materials, processes, and finished products. SGS-certified eco-compliance: ROHS, REACH, ELV.

: 17 Years Experience Superior Welding Results

High-purity tin with lower dross rate than industry average. Fast wetting | Robust & glossy joints | Zero defects (cold joints, bridging, collapse,etc.). Factory-direct pricing for maximum cost efficiency.

: 24/7 Technical Support Onsite Engineers Services

Provide technical support: 24-hour response | 72-hour full resolution. Free material replacement & solder dross recycling. Pre-sales consultation & post-sales troubleshooting.

Company Profiles

SHENZHEN JIAJINYUAN INDUSTRIAL TECHNOLOGY CO., LTD.Founded in October 2008, is a collection of electronic solder R & D, production, customization, solutions, services in one of the customized solder solutions provider, “JIAJINYUAN” has been selected as a strong brand national demonstration project [solder materials]. Jiajinyuan factory covers an area of more than 5,000 square meters, with a number of modern production equipment, testing equipment and laboratory equipment. Our lead-free solder products have passed the “SGS” test and are fully compliant with the latest EU RoHS directive and REACH standard ....... If you have any questions, please feel free to contact us!
